Smart Levelling Solutions
High performance, quality yet affordable digital levels / smart inclinometers.
Precision levelling and angle measurement/alignment tasks essentially involve surface planes that demand for 2-Dimensional solution rather than conventional single-axis levels/inclinometers. It is time to REPLACE your TWO units of Single Axis levels/inclinometers:
- No more tedious trial-and-error, back and forth taking reading one axis at a time;
- No costly need for owning 2 units of traditional single axis;
- No more bulky in size (large footprint) and fragile caused by its pendulum moving sensor parts.
Enjoy the advantages of Digi-Pas new generation levelling solutions:
- Digital, fast, error-free and accurate work;
- 2-axis, horizontal and vertical measurement & simultaneous XY readings;
- Be sure of your readings through REAL-TIME measurement values;

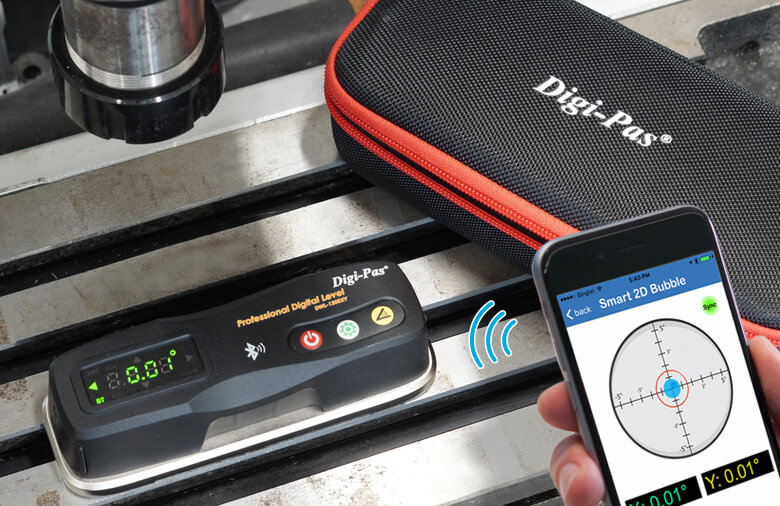

- Bluetooth, work remotely and directly reading the leveling status on your mobile phone/tablet;
- User-friendly display: easy menu setting and color display;
- Reading in various units of measurement: degrees, mm/M or inches/Ft;
- Saving measurement data;
- 1 Man Operation, saving you time & money.

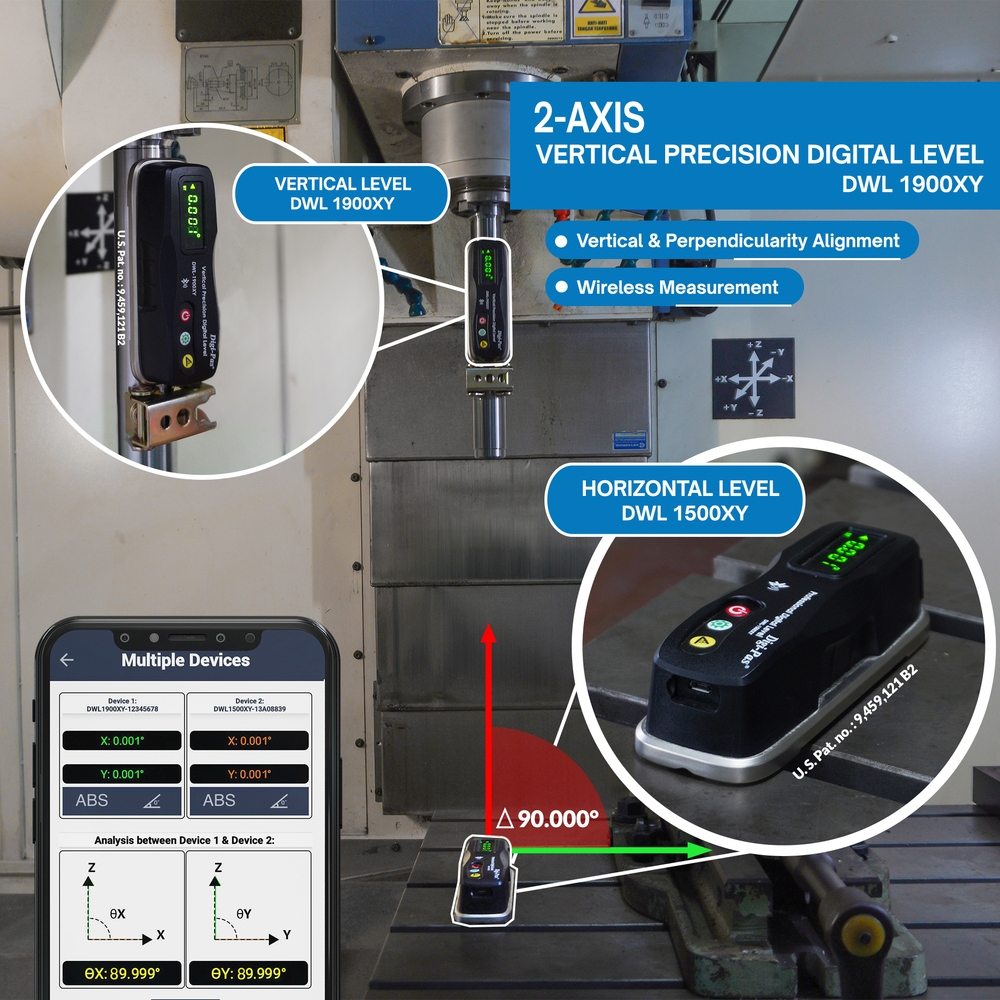

Digi-Pas DWL-1900XY is an AFFORDABLE Wireless-Bluetooth, Dual-Axis Precision Digital Level of 0.001° resolution designed for entry level used by industrial users & professionals. DWL-1900XY replaces old-fashioned VIAL levels. Users read both X & Y axis levelling measurements wirelessly in proximity via Bluetooth, which effectively cut down installation & setup time effortlessly (one-man operation) for precision machines & equipment, especially when used in conjunction with "DigiPas Smart Level" Mobile App (Free one redeemable app with each purchase) with user’s smartphone (additional option to purchase multiple app available on Apple & Android App Stores).
Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN.
Digi-Pas® 2-axis MEMS technology enables simultaneous 2D (X-Y plane) leveling and angles measurement (i.e. pitch & roll).
Digi-Pas 2-axis instruments have no moving parts inside and thus very tough and rugged yet SMALLER in size and is durable when subjected to common "bumps and knocks" during daily usage and transportation.
Digi-Pas 2-axis instruments are capable of REAL-TIME wireless Bluetooth/USB remote measuring & data logging.
The unique instruments of Digi-Pas® are patented and product’s accuracy performance is tested to specification and periodically re-validated by accredited 3rd party Calibration & Test Laboratories in USA, Japan, UK and Germany traceable to NIST, JIS, UKAS & DIN.
THE DIFFERENT MODELS OF 2-AXIS INTELLIGENT MACHINIST LEVEL
Digi-Pas DWL-1300XY & 1500XY BT
2-axis wireless machinist level is an affordable entry model that comes in 0.01°/0.2mm/M (DWL-1300XY) & 0.001°/ 0.02mm/M (DWL-1500XY) resolution.

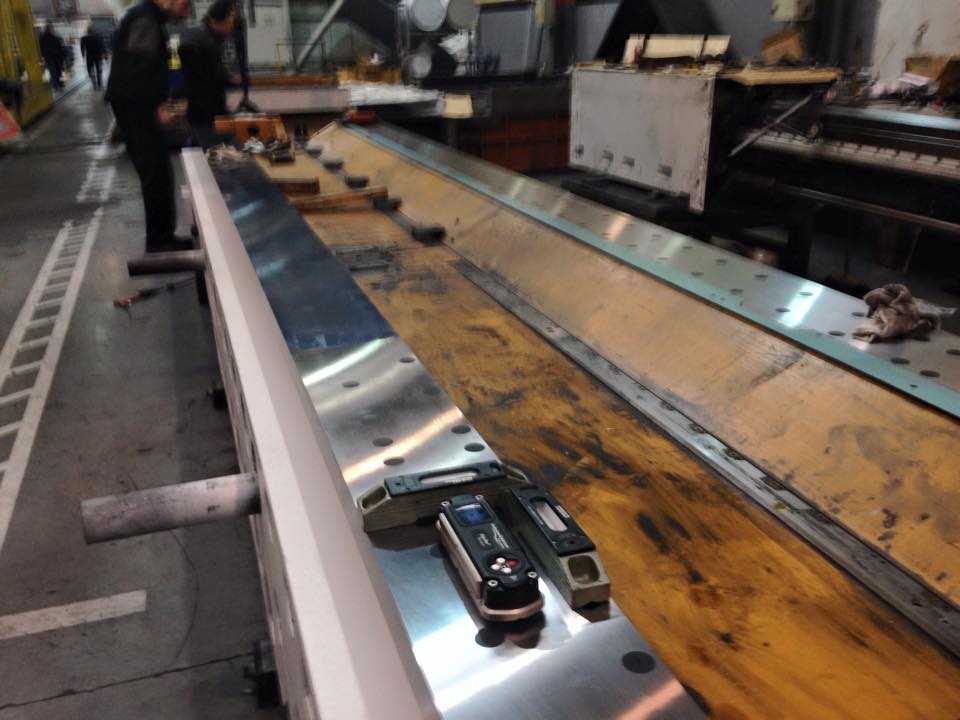

Used by industrial users & professionals for a quick set up/installation and inspection of machines & equipment.
Digi-Pas DWL-3000XY USB/BT
2-axis wireless machinist level is a mid-range precision model with a built-in Vibrometer. It has an accuracy of 0.01°/ 0.175 mm/M, and a wide measuring range (180.00°).
Designed to greatly simplifying the task of professionals & tradesmen in installation, setting up and maintenance of precision machines, test/measuring instruments & alignment-sensitive equipment.
Digi-Pas DWL-3500XY USB/BT
2-axis wireless machinist level is a premium high precision model with a built-in Vibrometer. It has a high accuracy of 0.001°/ 0.018 mm/M and wide measuring range (±20.000°).
Designed to greatly simplifying the task of professionals & tradesmen in installation, setting up and maintenance of high precision CNC machines, test/measuring CMM instruments & alignment-sensitive equipment.
Digi-Pas DWL-8500XY USB/BT
2-axis wireless machinist level is a ultra precision inclinometer model with a built-in Vibrometer. It has a resolution of 1 arcsec/ 0.005mm/M and wide measuring range of 14,400 arcsec. or 70mm/M.

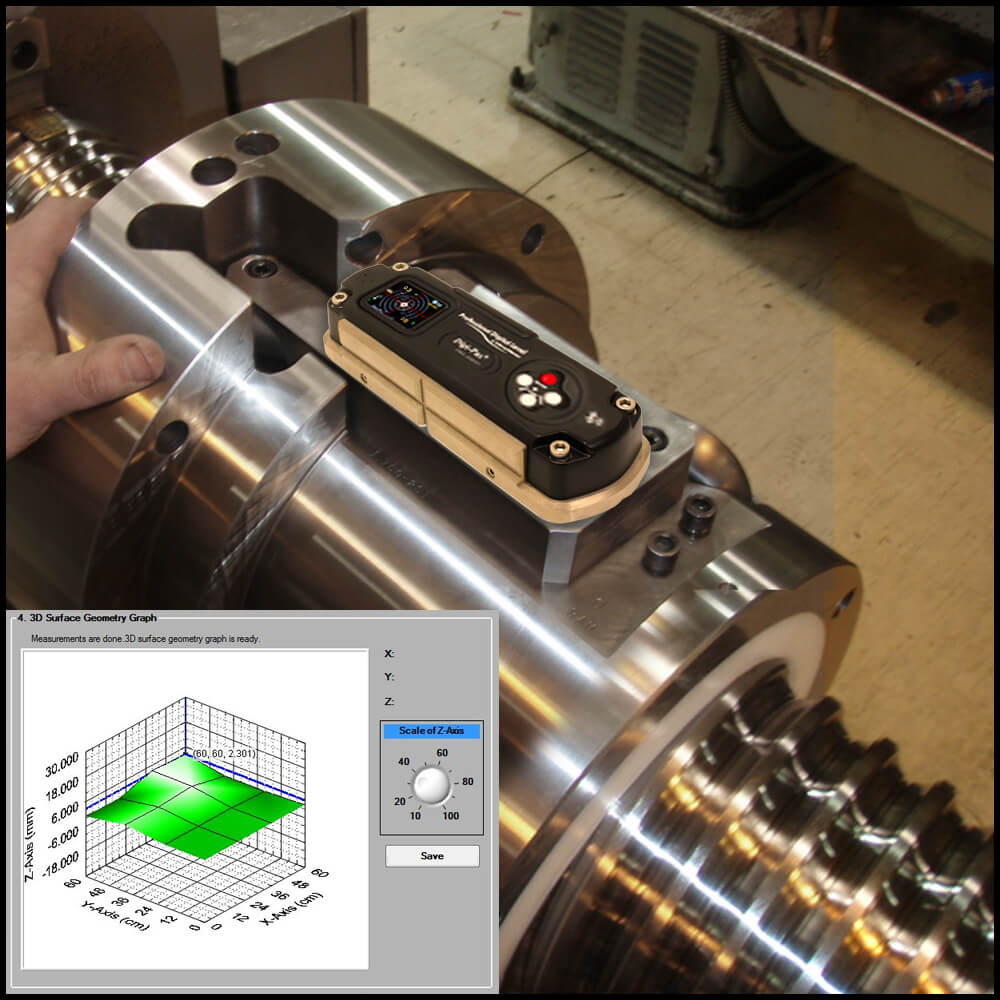

Digi-Pas DWL-9000XY USB/BT
2-Axis wireless machinist level is a ultra precision inclinometer model with a built-in Vibrometer. It has a resolution of 0.2 arcsec/ 0.001mm/M and wide measuring range of 7,200 arcsec. or 35mm/M.
Exceptionally engineered to greatly simplifying the task of engineering professionals & scientists in installation, setting up, maintenance and characterization of very large-sized CNC machines, plane-surface flatness profiling, precision test/measuring instruments & 2D alignment-sensitive equipment.
Watch it work
Download the app
Digi-Pas Level App is a user-friendly application, easily installed in any smartphone or tablet running on Apple/Android operating system. Users can fully utilize the remote wireless (Bluetooth) mobile connectivity for various Digi-Pas® 2-Axis Precision Digital Levelling Devices to gain high productivity and quality alignment work.
BENEFITS of the mobile phone/tablet app

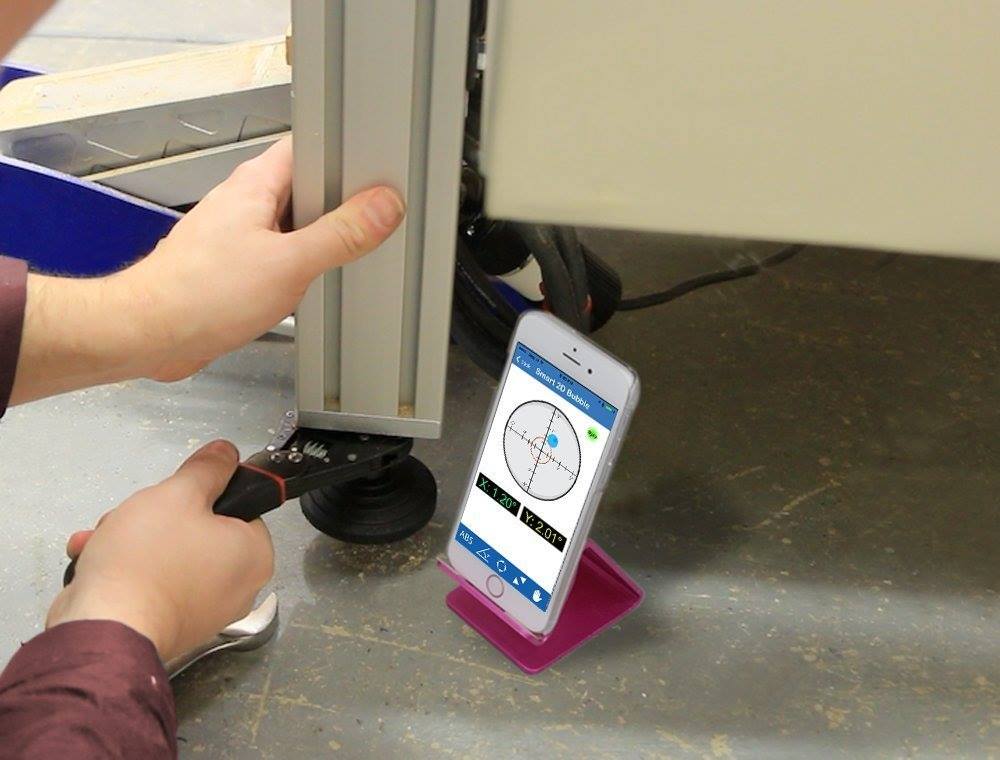

- Dual-Axis Numeric and Graphical Display of Measurement Data
Simultaneous 2-axis angular numerical and graphical measurement readouts display on tablet/smartphone screen via Bluetooth Wireless link.
- Measurement Data Display & User Interface
Built-in user interface employing animated display & visualization tools to interact with the device.
- Advanced Remote Measurement
User interface becomes simple and straightforward using animated vision approaches.
- Real-Time Remote Streaming Measurement
Remote measurement and continuous monitoring on precision Machine, Test and Measurement equipment for Levelling can be achieved via the use of over Bluetooth wireless link.
Software Support and Firmware Updates
Online firmware update service/notification feature. Latest version of firmware can be downloaded and installed at ease.
This app has a FREE version (Digi-Pas Level) and a PAID version (Digi-Pas Level PAID). It instantly empowers machine installer to perform remote 2-Axis simultaneous levelling task, angle measurement, & 2D concurrent alignment activities by HALF the time, precision & 'one-man-operation' that traditional single-axis digital or 'bubble' levels are unable to match.
Digi-Pas Level App is now available for Bluetooth version of:
- DWL-3000XY: Firmware 4.0 & Above
- DWL-3500XY: Firmware 4.0 & Above
- DWL-8500XY: Firmware 3.4 & Above
- DWL-9000XY: Firmware 3.4 & Above
NOTE For app DWL-1300XY and DWL-1500XY models, please use "Digi-Pas Machinist Level" or "Smart Level App". When scanning QR-code, you will get the right app for your machine!
Software, Firmware & App Upgrade
As Instrumentation Software and Mobile Apps technologies are advancing at fast pace, our R&D team is constantly adopting leading software (i.e. National Instruments Corporation) and embedded firmware technologies to continuously improve our existing and new products with high-functional performance and smarter user-interface features. For example, Digi-Pas® PC Sync Software has been improved to have an useful auto scale/zoom function when approaching zero level and incorporated with user friendlier graphics. The instrument/device firmware has been upgraded to higher sampling rate of ≤10milisecond to accurately capture vibration magnitude in real time.
Digi-Pas® PC Sync software is a 'Plug & Play' user-friendly interface version (embedded with National Instrument software) to fully utilize the remote wireless Bluetooth or USB connectivity to device on levelling, tilt angle, alignment and vibration measurements including data acquisition and logging functions.
Levelling and vibration data can be real-time recorded as evidence (aids decisions) to enable analysis of a machine's static & dynamic structural stability with high degree of accountability. PC Sync software empowers installer to perform remote 2-Axis simultaneous levelling task, angle measurement (plane), 2D alignment activities, inclination and vibration measurements with speed, precision & 'one-man-operation' that traditional single-axis digital/'bubble' levels are unable to match.
A Dongle is accompanied with each purchase of a PC Sync Software. The Dongle is required to be inserted in your PC USB connection while you are running PC Sync Software. User may download the Dongle driver, see link above https://www.digipas.com/support/firmware.php
PC Sync Software Professional for premium model DWL-3500XY
Digi-Pas 2-Axis digital Levelling Instrument & Inclinometers
Yes. Digi-Pas® Precision Digital Levels have been calibrated and tested by accredited 3rd party independent bodies in the USA, UK, Germany and Japan in accordance with ISO/IEC 17025:2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN under ILAC & A2LA.
It is recommended for users to calibrate their measuring tools and instruments periodically to ensure maximum accuracy conformance.
Sometimes, improper handling, transporting, storing (e.g. out of specified storage temperature range) and accidental exposure to physical shock (e.g. dropping or hitting the device against some hard objects) may affect the accuracy of the device.
Digi-Pas® digital levels have a smart built-in feature which enable users to perform self-calibration with ease to set their digital levels back to its factory accuracy. Users can refer to their manuals see link: https://www.digipas.com/support/catalogue.php for instructions on self-calibration, or simply watch Digi-Pas videos and follow the steps on how to calibrate, see following link: https://www.digipas.com/support/video.php
This situation happens when the precision level is placed on a rough, dirty or uneven surface.
Precision digital levels are very sensitive to surface unevenness where placed. Ensure that the machine contact surfaces are clean and smooth to get consistent readings. E.g. to check/verify your precision level of 0.01° accuracy, a typical machined surface is generally adequate. However, for precision level of 0.001° accuracy, a grade AA Granite Table (or an equivalent surface flatness of ≤3µm) is required.
Your precision digital level may have been subjected to extreme physical or temperature shocks during usage, transportation or storage that affected its accuracy. An offset value of reading may have been present. Digi-Pas® precision digital level has a smart built-in feature that empower users to perform self-calibration to completely remove any residue offset and set the device to its factory accuracy.
Alternatively, users may choose an easy 'quick solution' to simply perform the Absolute Level Setting on the surface of the object to be measured to remove any residual offset on each measurement to be taken.
Yes, users could perform self-calibration for Digi-Pas® 2-axis precision levelling devices. However, precision digital levels are very sensitive to surface unevenness, hence appropriate set up procedures with a Granite table and Master Square are required.
Alternatively, users may send their devices to a designated independent, 3rd party calibration service provider in their geographical region for calibration. Users may contact their respective Distributor or Manufacturer’s Representative to assist in locating a competent calibration lab.
Yes, each instrument/device sold and delivered is accompanied with a Manufacturer’s Calibration Certificate* and a Declaration of Conformity Certificate for that specific instrument/device.
These instrument/devices have been tested in Digi-Pas Laboratory in accordance to ISO/IEC 17025:2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN under ILAC & A2LA.
The Calibration Certificate and Declaration of Conformity ensure that each device/instrument has been rigorously tested and strictly in conformance to stated specification traceable to NIST, JIS, UKAS & DIN through the National Metrology Center (a member of CIPM-MRA international standard).
To view samples of Digi-Pas° Calibration Certificate and Declaration of Conformity Certificate please see link: https://www.digipas.com/support/calibration.php
Alternatively, you may request to include a quote from your supplier/distributor to have the instrument calibrated & tested by competent 3rd party independent lab proximity to your geographical location.
Absolute Level feature is a useful mean of ensuring each measurement reading is in accordance to maximum device accuracy specified regardless whether the device has a measurement offset resulting from user's minor mishandling on device.
Yes. By performing "Absolute Level", you can ensure that the device is in accordance to maximum device accuracy specified by the manufacturer.
Note : The Absolute setting is reset once device is powered off
The warranty period for these device is 2 (two) years from the date of purchase. Please refer to Digi-Pas® warranty agreement see link for further details: https://www.digipas.com/support/warranty.php
The delivered batteries would last for over 6 hours in continuous use (i.e. LCD continuously turned ON). The firmware has intelligent power management system to automatically dim the display (i.e. user defined) for preserving power and prolong battery life over 12 hours.
Unlimited extension of battery life of the instrument can simply be achieved through the use of USB external power source connected to the USB terminal of the instrument.
Yes. The device comes with a durable transport case, batteries, Manufacturer’s Calibration Certificate* & Declaration of Conformity Certificate.
*except for the hardware tools (to which the 2-axis smart mini-cube inclinometer belongs), you can require such certificate for the production batch from factory, but not for that specific device.
Digi-Pas PC Sync Software relevant to the models: DWL-2000XY, DWL-3000XY, DWL-3500XY, DWL-8500XY and DWL-9000XY
Basic PC Sync software allows users to perform simple remote measurement and data acquisition while Professional PC Sync (optional) allows user to fully utilize the device for additional data logging and remote monitoring capability such as customization of data acquisition and measured data/readings saving for user analysis.
For a feature comparison between Basic and Professional versions for each model, see link: https://www.digipas.com/product/precision-measurement/2-axis-precision-digital-machinist-level/pc-sync.php
User's PC is recommended the followings items to be installed for using the software:
- Microsoft framework 3.5 for 32bit Windows OS or
- Microsoft framework 4.0 for 64bit Windows OS
- Windows XP service pack 3 / Windows Vista / Windows 7 / Windows 8 / Windows 10
The following item are required:
- At least 1 GB Ram
- At least 100MB free disk space
- Microsoft Excel 2007 and above
- USB 2.0 Port
- Bluetooth adapter (for Bluetooth connection)
Most PC brands that meet the above requirements will be compatible with the PC Sync software.
Users are advised to check for upgrades periodically to ensure that the PC Sync software is equipped with the latest features to enhance performance.
For latest firmware and software upgrades, see link: https://www.digipas.com/support/firmware.php
When you purchase PC Sync Software, a Dongle is accompanied with your purchase. The Dongle is required to be inserted into your computer's USB connector in order to give you access (license) to the PC Sync Software of Digi-Pas.
To install the dongle driver properly, download the Dongle Driver from this link: http://www.digipas.com/asset/download/dongle-driver.zip and manually install it into your PC.
Alternatively, the dongle driver installation folder can be found from the PC Sync software CD.
Digi-Pas Mobile App relevant to the Bluetooth models: DWL-1300XY, DWL-1500XY, DWL-3000XY, DWL-3500XY, DWL-8500XY and DWL-9000XY
There are 2 Digipas Mobile App titles:
(1) "Digi-Pas Machinist Level" is used for models DWL1300XY and DWL1500XY and will be/ is replaced by the “Digi-Pas Smart Level” App.
NOTE: please check your code card, and when you scan the QR code you will always have direct acces tot the right & updated App for your instrument.
(2) "Digi-Pas Level Sync" Pro(fessional) version is used for models DWL3000XY-B, DWL3500XY-B, DWL8500XY and DWL-9000XY.
The Apps are available at Apple and Google Play Store.
One App is FREE to be redeemed, accompanied in each purchase for any DWL1300XY or DWL1500XY devices. Additional PAID Apps can be purchased from Apple and Google Play Store.
Yes, you can share one device with multiple smartphones each downloaded with a Digi-Pas App. Each App works with one designated smartphone/tablet. You need to purchase one PAID app for each phone. For device models DWL1300XY or DWL1500XY, one App can simultaneously connect up to two devices.
